Shumcar

OPERATION

The basic principle of operation of the Shumcar ™ module is based on high pressure fire extinguishing and highly dispersed water jet using a dry foaming agent as a wetting agent added to water.

DEVICE

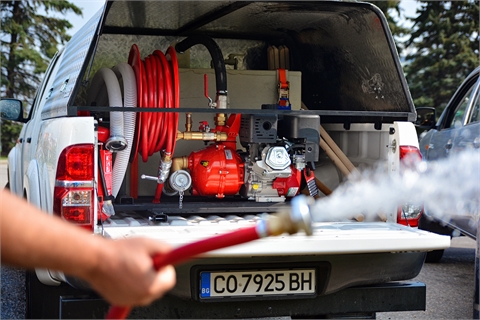

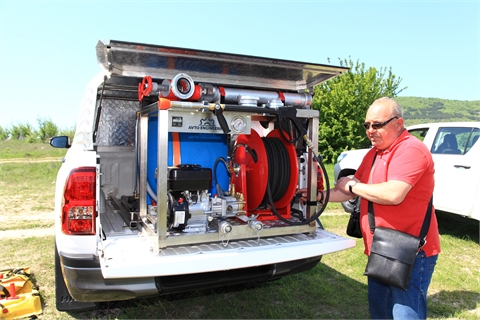

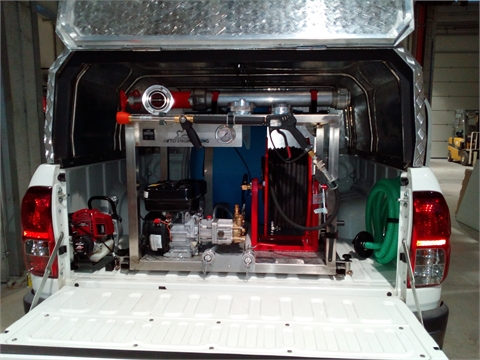

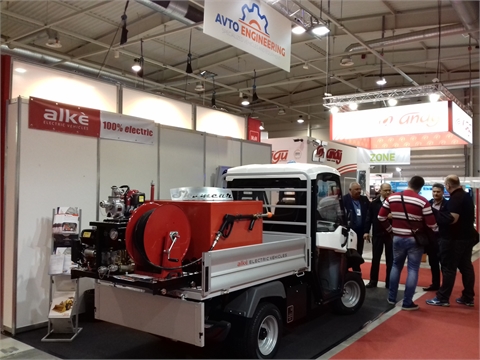

The module consists of an internal combustion engine, a pump, a semi-rigid hose, a spray gun, a water tank, a cartridge with a dry foaming agent, mounted on a frame with handles for carry.

ENGINE

The engine is petrol and is activated by a manual starter which makes it reliable and independent of the need to use a rechargeable battery and electric starter requiring additional maintenance.

PUMP

The pump is axial, piston. It is made of bronze and aluminum alloys. To ensure trouble-free operation of the pump the suction part is equipped with a filter for solid fragments.

HOSE

Semi-rigid hose with a length of 50 m.

JET

The spray gun allows the pass of dense and dispersed water jets. It is connected to the semi-rigid hose through quick-acting coupling.

TANK

The module is equipped with a water tank with a capacity of 300 liters, sufficient for continuous firefighting for 30 minutes.

Engine	Four-stroke gasoline
Power, kW (hp)	4,3 (6,0)
Capacity	15 (l/min)
Pump	For ultra-high pressure
Working pressure	170 bar
Long-range jet	до 17 m
Fire hose	For ultra-high pressure
Fire hose length	50 m
Dimensions	600/600/550 mm
Total weight	60 kg
Basic color	RAL 3000
