Shumcar Mobile

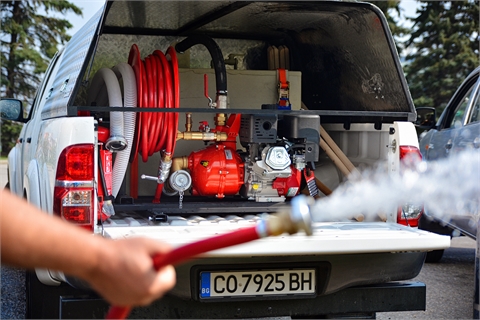

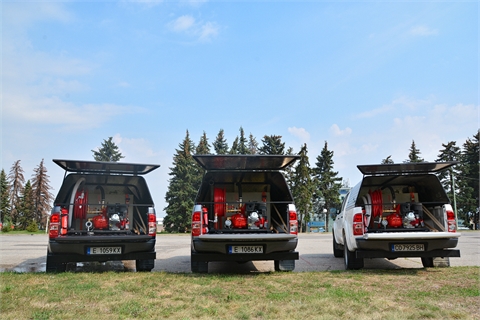

Shumcar Mobile provides high-pressure fire extinguishing. It allows easy and quick installation in the cargo compartment of all brands of light commercial vehicles such as pickup trucks, vans, as well as in the bodies of trucks.

The Shumcar fire extinguishing modules are innovative products, created by the team of engineers and designers of Avto Engineering Holding Group.

OPERATION

The basic principle of operation of the Shumcar ™ module is based on high pressure fire extinguishing and highly dispersed water jet using a dry foaming agent as a wetting agent added to water.

DEVICE

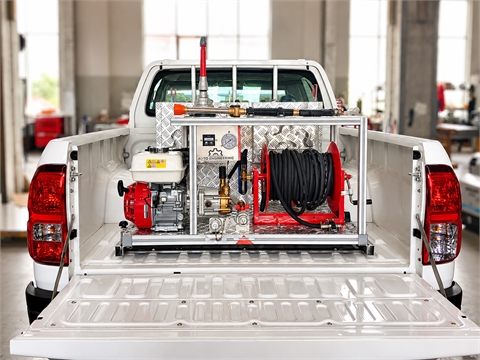

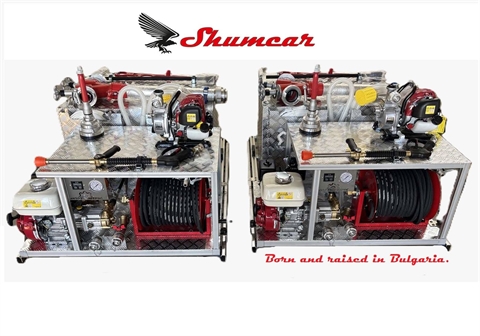

The module consists of an internal combustion engine, a pump, a semi-rigid hose, a spray gun, a water tank, a cartridge with a dry foaming agent, mounted on a frame with handles for carry.

ENGINE

The engine is petrol and is activated by a manual starter which makes it reliable and independent of the need to use a rechargeable battery and electric starter requiring additional maintenance.

PUMP

The pump is axial, piston. It is made of bronze and aluminum alloys. To ensure trouble-free operation of the pump the suction part is equipped with a filter for solid fragments.

HOSE

Semi-rigid hose with a length of 50 m.

JET

The spray gun allows the pass of dense and dispersed water jets. It is connected to the semi-rigid hose through quick-acting coupling.

TANK

The module is equipped with a water tank with a capacity of 300 liters, sufficient for continuous firefighting for 30 minutes.

Engine	Four-stroke gasoline
Power, kW (hp)	4.3 (6.0)
Productivity, (l/min)	15
Pump	For ultra-high pressure
Working pressure	170 bar
Jet distance	up to 17 m
Hose	For ultra-high pressure
Hose length	50 m
Overall dimensions	600/600/550 mm
Total weight	60 kg
Main color	RAL 3000
